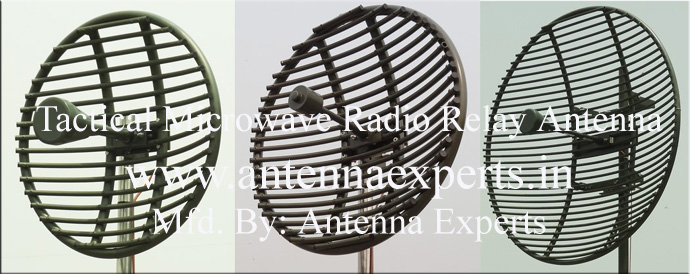

The APT series high capacity tactical military radio relay grid parabolic antenna manufactured by Antenna Experts uses 6063T6 ultra corrossion resistant architectural anodized aluminum alloy. Our APT series tactical radio relay grid parabolic antennas are highly suitable for all tactical and fixed station applications for conventional military radio relay systems.

The military high capacity tactical radio relay grid parabolic antenna manufactured by Antenna Experts available in NATO Band I, NATO Band II, NATO Band III and NATO Band IV. The military tactical grid parabolic antenna operates in linear (vertical or horizontal) polarization and requires only one operator for installation.

The mounting arrangement of tactical grid parabolic antenna manufactured by Antenna Experts permits to change the polarization from horizontal to vertical and vice-versa by mounting hardware fitted at rear end of the grid parabolic antenna. Also the grid parabolic reflectors of these APT series tactical microwave radio relay antennas are supplied complete in assembled condition.

These APT series military grade tactical radio relay grid parabolic antennas features high gain, low side lobes, rugged constructions and perfect for use in crowded electromagnetic spectrums which avoid interference from co-sited antennas. The dipole feed (horn) of these APT series tactical radio relay grid parabolic antennas are sealed in enclosure making these antenna highly suitable for severe environmental conditions.

The parabolic reflector is illuminated by a primary feed which is fitted to the center of assembly with quick fastener system. Radiating elements and the dipole feed of tactical grid parabolic antenna are made of high quality aluminum alloy to avoid any dis-similar materials. Dipole feed of tactical grid parabolic antenna can be dismental and/or assembled in the field quickly for easy of shipping and transportation purpose.

The grid parabolic tactical radio relay antenna operates at D.C. ground with low resistance discharge path for protection against lightning and immunity to noise. These APT series tactical grid parabolic antennas can be installed within 5 minutes by two technicians with simple hand tools. Only one spanner is required to install the tactical grid parabolic antenna on the mast.

All the APT series MIL-STD antenna manufactured by Antenna Experts are supplied with +/-15 degrees elevation tracking mechanism where fine adjustment is necessary to optimized the signal strength of voice/data link having very narrow beamwidth of these antennas. Also these APT series tactical microwave radio relay antennas are high suitable for High Speed Terrestrial Data link.

All the screws, nuts and bolts of tactical microwave grid parabolic antennas manufactured by Antenna Experts are of type 316 marine grade stainless steel. The support pipe and support rim are welded together to provide the extra rigidity and strength to withstand the specified wind load. The antenna supplied with standard olive green color. Other customized color can also be supplied on request.

The APT-1327 series heavy duty tactical microwave grid parabolic antenna operates in the 1350-2700MHz. frequency band which cover the entire NATO band III+ frequency band with single antenna and single dipole feed. The dipole feed of all the APT series antennas are sealed in a fiberglass/ABS housing to make these tactical grid antenna highly weather proof to protect these from severe environmental condition.

Antenna Experts high gain tactical grid parabolic antenna supplied with army green color. The complete grid parabolic antenna is supplied with anti-corrosive powder coating finish and the dipole feed is completely sealed inside ABS housing/radome to make the antenna 100% weather proof.

The APT-4726 and APT-4729 series high performance tactical grid parabolic microwave antenna operates in the 4400-5000 MHz frequency band which cover the entire NATO band IV frequency band with 26dBi gain from 0.6 meters (2 feet) parabola and 29dBi gain from 0.9 meters (3 feet) diameter parabola respectively.

The APT-4732 and APT-4734 series high performance tactical microwave grid parabolic antenna operates in the 4400-5000 MHz frequency band which cover the entire NATO band IV frequency band with 32dBi gain from 1.2 meters (4 feet) parabola and 34dBi gain from 1.5 meters (5 feet) diameter parabola respectively.

The APT-1617, APT-1619 and APT-1622 series UHF tactical grid parabolic antenna operates in the 1350-1850 MHz frequency band which cover the entire NATO band III frequency band with single dipole feed. All of our APT series military tactical grid parabolic antennas are supplied with olive green military colour. Customized colour can also be be supplied on request.

The APT-1327-3 and APT-1327-4 series UHF tactical grid parabolic antenna operates in the 1350-2700 MHz frequency band which cover the entire NATO band III+ frequency band with 18-24dBi gain from 0.9 meter (3 feet) parabola and 21-27dBi gain from 1.2 meters (4 feet) diameter parabola respectively.

Understanding High-Capacity Radio Relay Communications

In modern warfare, communication is the lifeblood of tactical and strategic operations. Without robust, secure, and instantaneous data transfer, even the most advanced military forces risk operational paralysis. The modern battlefield demands the continuous exchange of voice, high-definition video, targeting data, and C4ISR (Command, Control, Communications, Computers, Intelligence, Surveillance, and Reconnaissance) information. This is where High-Capacity Radio Relay (HCRR) systems, operating across designated NATO bands, become the true backbone of the battlefield. Behind these complex communication networks are the hardware systems that make transmission possible. Designing the critical points of transmission and reception requires extreme precision, and facilities in the Delhi NCR, India region have become crucial hubs for engineering these highly specialized military, aerospace, marine, and aviation antenna systems.

What Are NATO Band Radio Relays?

A radio relay system provides secure point-to-point and point-to-multipoint connections between military IP routers, command centers, and legacy communications systems. By operating across designated NATO spectrums (for instance, NATO Band I cover 225-400 MHz, NATO Band II spans 610-960 MHz, NATO Band III covers 1350-1850 MHz, NATO Band III+ covers 1350-2700 MHz, and NATO Band IV spans 4400-5000 MHz), these systems avoid civilian interference and are standardized to ensure interoperability between allied nations. These high-capacity links act as the bridge over which the bulk of a military's data is carried when satellite bandwidth is unavailable, delayed, or actively jammed by an adversary.

What is High Capacity Radio Relay?

At its core, a radio relay system uses a series of high-performance antennas to transmit and receive high-frequency radio waves (usually in the microwave spectrum) across a line-of-sight path. Unlike traditional omnidirectional broadcasting that scatters signals in all directions, radio relay focuses the signal into a tight, highly directional beam. This concentrated energy minimizes signal loss, increases security by making the signal harder to intercept, and-most importantly-allows for high capacity data transfer that rivals physical fiber connections.

Important Technical Parameters of HCRR Antennas

To meet the rigorous demands of the modern war-fighter, HCRR networks rely on highly engineered antenna arrays-such as advanced log-periodic, discone, helical, yagi, collinear, and stacked dipole configurations. These must adhere to stringent specifications:

Frequency Agility & Hopping: Systems must support rapid Frequency Hopping Spread Spectrum (FHSS) to counter Electronic Counter-Measures (ECM) and jamming attempts.

Data Throughput: Capability to handle scalable transmission capacities from 2 Mbps up to 100 Mbps (using CPM, 16 QAM, or 64 QAM modulation).

Adaptive Power Control (APC): Automated adjustment of transmission power to minimize the likelihood of interception and detection.

Beamforming & High Gain: Utilizing precisely engineered multi-element arrays to create narrow, high-gain transmission beams over 25 kilometers.

Forward Error Correction (FEC): Ensuring data integrity and minimizing packet loss even in environments with high signal-to-noise interference.

Environmental Camouflage: Tactical arrays are treated with specialized visual and radar-absorbent coatings, strictly finished in matte olive green, sand yellow, or desert tan to blend seamlessly into operational theaters.

Key Applications in the Field

Military tactical radio relay systems utilize specific NATO frequency bands often based on EUROCOM standards to balance range, signal penetration, and data throughput. High-Capacity Radio Relay (HCRR) systems typically operate in the higher frequency tiers, such as Band IV and Band III+ to achieve the wide bandwidths necessary for high-speed battlefield network backhaul. The deployment of HCRR systems and specialized military antennas serves several critical mission parameters:

Secure Line-of-Sight (LOS) Backhaul: Establishing high-bandwidth trunk lines between forward operating bases (FOBs) and rear command echelons.

Offensive & Flexible Battlefield Environments: Rapid deployment of mobile command centers requiring instant high-speed data access without relying on vulnerable fiber-optic cables.

C4ISR Data Transfer: Transmitting real-time high-definition drone feeds, radar telemetry, and geospatial intelligence across high-altitude and rugged terrains.

Naval & Aerospace Integration: Linking marine vessels and aviation assets into a unified tactical network using omnidirectional discone and high-gain helical arrays.

Rapid Deployment: When disaster strikes or a military unit needs to establish a command center, waiting weeks to lay fiber isn't an option. Radio relay antennas can be set up in hours.

Cost-Effective Backhaul: Expanding networks across mountains, rivers, or dense urban infrastructure is vastly cheaper when transmitting through the air instead of the ground.

Low Latency: Radio waves travel through the air faster than light travels through fiber-optic glass, giving radio relay a slight latency advantage for mission-critical operations.

The Role of Antenna Experts: Uncompromising Quality and Compliance

The effectiveness of any HCRR network is fundamentally limited by the quality of its antennas. Antenna Experts has established itself as a premier manufacturer in this highly specialized field, producing aerospace, marine, military, and aviation antenna systems engineered to perform when failure is not an option. Operating out of a state-of-the-art facility in New Delhi NCR, India, Antenna Experts ensures that every piece of hardware is built to survive the harshest environments on the planet. Their commitment to battlefield reliability is reflected in their extensive list of compliances and certifications:

MIL-STD-810G Compliance: Rigorously tested against military standards for extreme temperatures, shock, vibration, humidity, salt fog, and explosive decompression.

NATO Cage Code: Officially recognized and registered within the NATO codification system, streamlining procurement for allied defense forces globally.

Nato Stock Number (NSN): Products are assigned NSNs, verifying their integration into defense logistics systems and military supply chains.

EU & CE Directives: Fully compliant with European Union safety, health, and environmental protection requirements for electronic and telecommunication equipment including RoHS, REACH & WEEE.

ISO Certification: Manufactured under strict ISO 9001 certified quality management systems, ensuring consistent, defect-free production across all product lines. We also have ISO 14001 and ISO 18001 Certification

In an era where spectrum dominance equates to battlefield supremacy, the combination of advanced NATO band HCRR networks and the rugged, precision-engineered solutions from Antenna Experts ensures that military forces remain connected, informed, and ready to act.

Why MIL-STD Compliance Matters for High Capacity Terrestrial Links

When setting up high-speed terrestrial data links for military operations, the physical hardware is just as critical as the RF engineering. True tactical radio relay systems must guarantee continuous uptime regardless of the weather-from severe salt fog on coastal deployments to drastic temperature swings at high altitudes.By leveraging NATO Band compatibility alongside meticulous mechanical design (like the type 316 marine grade stainless steel hardware and ABS-sealed radomes), modern tactical arrays ensure rapid deployment (under 5 minutes) and zero downtime when communication matters most.

Band IV Features Utilized in High-Capacity Radio Relay (HCRR)

Modern military HCRR systems, typically operating in Band IV (4.4 - 5.0 GHz) or Band III+, are designed to establish secure, fiber-like backbone connectivity across hostile environments. To achieve this, they incorporate several advanced RF and networking features:

Electronic Counter-Countermeasures: Systems employ rapid frequency hopping across their wide operational bands to avoid interception and mitigate active enemy jamming attempts.

Adaptive Power Control: Transceivers dynamically adjust their output power based on real-time link conditions. This maintains link stability during atmospheric fading while minimizing the radio footprint to lower the Probability of Intercept (LPI/LPD).

Adaptive Modulation and Coding: Links seamlessly shift between complex modulation schemes (like 64-QAM for maximum throughput) down to robust schemes (like QPSK or CPM) during heavy interference or adverse weather conditions to prevent link failure.

Forward Error Correction: Heavy data interleaving and advanced coding algorithms are applied to mathematically rebuild lost data packets, ensuring data integrity over degraded RF channels. Full-Duplex Communication: Operating primarily through Frequency Division Duplexing (FDD), these links transmit and receive simultaneously, allowing for ultra-low latency backhaul that supports voice, video, and data multiplexing.

Flexible Architectures: Baseband indoor units (IDUs) offer multi-interface support (Ethernet, E1/E3) and the transceivers can be configured for both Point-to-Point (PTP) and Point-to-Multi-Point (PTMP) network topologies for rapid battlefield deployments.

Antenna Experts High Capacity Tactical Radio Relay Antenna Complied the following MIL-STD Environmental Specifications:

High Temperature: MIL-STD-810G, Method 500.5, Procedures I and II (Operational: +70°C and Storage: +70°C)

Low Temperature: MIL-STD-810G, Method 502.5, Procedures I and II (Operational: -30°C and Storage: -40°C)

Low Pressure(Altitude): MIL-STD-810G, Method 500.5, Procedures I and II (Operational: -457.2 m to 4572 m Storage: 15,240 m)

Vibration: MIL-STD-810G, Method 514.6, Procedure I Table 514.6C-VI, Category 4 Duration 120 minutes test

Shock: MIL-STD-810G, Method 516.6, Procedure IV

Rain: MIL-STD-810G, Method 506.5, Procedure I

Humidity: MIL-STD-810G, Method 507.5, Procedures I and II

Fungus Resistance: MIL-STD-810G, Method 508.6

Salt Fog: MIL-STD-810G, Method 509.5

Please visit our "Tactical Radio Relay Antenna" section for more details on tactical radio relay grid parabolic antenna products datasheets and installation manual in pdf format. You can also request us for more detailed datasheet including VSWR curve and radiation patterns.
