IFF System Fundamentals and Operational Modes

Identification Friend or Foe (IFF) antennas serve as the critical hardware interface for secure aircraft recognition systems, designed to prevent "friendly-fire" incidents and support rapid operational decision-making. Operating primarily in the L-band (960–1240 MHz), these passive, vertically polarized omni-directional antennas facilitate a two-channel communication process: utilizing 1030 MHz for interrogation signals and 1090 MHz for transponder responses. Beyond standard IFF modes, these antennas are fully compliant with Universal Access Transceiver (UAT 978 MHz) and Automatic Dependent Surveillance-Broadcast (ADS-B 1090 MHz) protocols, while also supporting Mode-S and Distance Measuring Equipment (DME) applications.

Advanced Radiating Architecture and Signal Integrity

The IFF antenna employs a coaxial dipole design optimized for broadband performance across land, sea, and airborne platforms. To ensure signal purity, the system is engineered without internal junctions, a design choice that effectively prevents RF inter-modulation. Furthermore, specialized stub matching is utilized to maintain a smooth Voltage Standing Wave Ratio (VSWR) and constant gain throughout the operational frequency band. These antennas are ground-plane independent, meaning they can be installed on both metallic and non-metallic surfaces without distorting the radiation pattern, thereby ensuring a true omni-directional horizontal coverage essential for 360-degree situational awareness.

Aerospace Engineering and Aircraft Body Integration

For airborne applications, the IFF antenna features an extended stub design that creates physical separation between the radiator and the aircraft fuselage. This spacing is vital for minimizing signal interference and pattern shielding caused by the aircrafts metallic body. The system is designed for high-speed aerodynamics and survivability, with the entire radiating element hermetically sealed within a ruggedized fiberglass radome. This construction protects the antenna from the extreme thermal and mechanical stresses encountered during flight, ensuring it remains operational in the most severe environmental conditions.

Tactical Deployment and Mounting Specifications

The mechanical profile of these IFF antennas is characterized by a low-profile, lightweight footprint that allows for easy handling and versatile mounting. Each unit features a bulkhead N-Female connector at the base, enabling a secure, direct-through-chassis installation. Mounting requires a single 16mm diameter hole, and the system is supplied with high-quality nuts and a rubber "O" gasket to maintain the aircrafts pressurized integrity and provide a weatherproof seal. For mission-critical readiness, these antennas can also be equipped with an electrically coupled test probe, allowing ground crews to perform real-time online status checks of the identification system before or during deployment.

Identification Intelligence and Combat Readiness

As the centerpiece of modern military air traffic control, IFF antennas provide a secure method for distinguishing between friendly, neutral, and hostile forces in contested airspace. Their multi-band capability allows a single antenna to manage various identification-intelligence tasks, reducing the need for multiple discrete radiators on a single platform. Whether deployed on ground-based stations, naval vessels, or high-performance military aircraft, these systems are qualified to meet the stringent technical requirements of international electronic recognition standards, directly contributing to reduced casualties and enhanced strategic coordination in multi-domain operations.

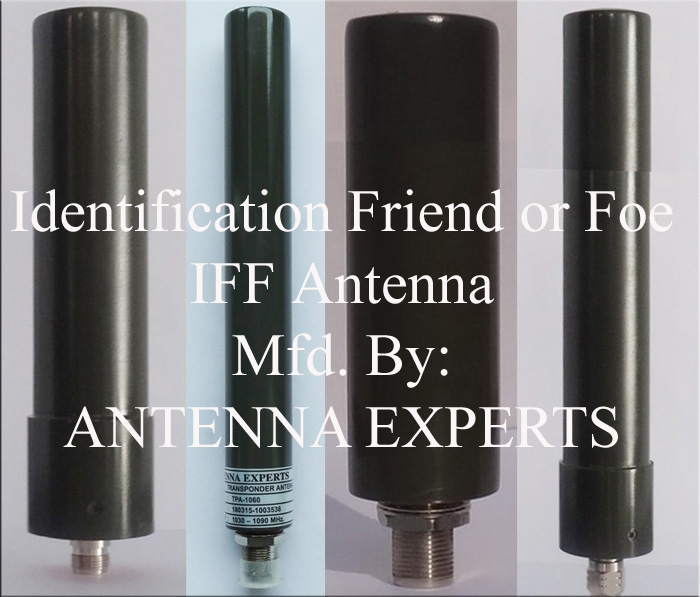

Antenna Experts IFF Antennas are available in single band, dual band & multi band option with various mounting platform including ground-based and shipboard application. Antenna Experts IFF (Identification Friend or Foe) antenna is used to transmits signals to identify friendly aircraft or other military assets and receives replies to determine if they are friendly or hostile.

IFF antenna are passive, multi-channel, vertical polarized, omni-directional L band antenna operating from 960-1240MHz, compliant with Universal Access Transceiver (UAT 978MHz) and Automatic Dependent Surveillance-Broadcast (ADS-B 1090MHz) frequency bands. Our IFF antenna also supports 1030-1090MHz Air Traffic Controller (ATC) Mode-S and 976-1213MHz Distance Measuring Equipment (DME) applications.

Antenna Experts IFF antennas are used in various applications, including ground based, shipboard and airborne systems. Our IFF antenna come with different configurations to support various IFF modes and operate in in the L-band. Our IFF antenna are multi band, an omni-directional broadband, higher performance, coaxial dipole type antenna designed specifically for use in aircraft for IFF application.

IFF antennas are electronic Identification Friend or Foe (IFF) air traffic control recognition devices and systems designed to prevent military friendly-fire incidents, detect potential adversary incursions, support operational decision-making, and reduce casualties in the air, on land, and at sea.

The IFF antenna uses extended stub in order to keep the radiator away from aircraft so that the interference caused by aircraft body could be minimize. IFF antenna does not use any junction to prevent RF inter-modulation and is completely protected within a high-tech ruggedized fiber glass radome to ensure survivability in the worst environments.

We offer sophisticated airborne IFF antenna operating in the L-band for identifying friend or foe. The compact size of multi-band IFF antenna allows easy handling and shipping. Bulkhead N-Female connector is fixed at the bottom of antenna which allow smooth mounting of antenna thru aircraft chassis.

Antenna Experts IFF antennas can be supplied with electrically coupled test probe for testing the online status. These low-profile light weight antennas are compatible with military aircraft identification systems and are suitable for identification-intelligence applications.

Identification Friend-or-Foe (IFF) is a secure aircraft identification system that detects and tells us the difference between the friendly and hostile aircrafts. These systems use electromagnetic and RF devices to communicate with the aircrafts and identifying friendly, foe or neutral forces in airspace.

IFF antenna uses special stub matching is used for smooth VSWR and constant gain over the entire frequency band. IFF antenna is free from ground plane and can be installed on metallic or non-metallic surface which eliminates the distortion of the radiation pattern and ensures a true omni-directional horizontal pattern.

IFF system is center of military operations as it allows armed forces to recognize friends and identify potential hostiles. One holes of 16mm diameter is required to mount the antenna. A rubber "O" gasket and high-quality nuts are supplied with the antenna to mount the same on aircraft body. An IFF system is a is a two-channel system, using the 1030 MHz band for interrogating signals and the 1090 MHz band for response signals.
