Manpack Jammer Antenna

Manpack Jammer Antenna

 # Model Frequency Bandwidth Gain Download ENQ
1. JCM-150 100-200MHz 100 - 200 MHz -3 dBi
2. JCM6-1216 1200-1600MHz. 1200 - 1600 MHz 6 dBi.
3. JCM7-1227 1210-1240MHz. 1210 - 1240 MHz 7 dBi.
4. JCM7-1575 1550-1590MHz. 1550 - 1590 MHz 7 dBi
5. JCM6-1850 1800-1870MHz 1800 - 1870 MHz 6 dBi.
6. JCM9-1850 1800-1870MHz 11800 - 1870 MHz 9 dBi
7. JCM6-1820 1800-2000MHz 1800 - 2000 MHz 6 dBi.
8. JCM6-2025 2000-2500MHz 2000 - 2500 MHz 6 dBi.
9. JCM-20-100 20-100MHz 20 - 100 MHz -15 dBi
10. JCM6-2150 2100-2170MHz 2100 - 2170 MHz 6 dBi.
11. JCM9-2150 2100-2170MHz 2100 - 2170 MHz 9 dBi
12. JCM6-2450 2400-2500MHz 2400 - 2500 MHz 6 dBi.
13. JCM9-2450 2400-2500MHz 2400 - 2500 MHz 9 dBi
14. JCM6-2530 2500-3000MHz 2500 - 3000 MHz 6 dBi.
15. JCM6-2650 2600-2700MHz 2600 - 2700 MHz 6 dBi.
16. JCM9-2650 2600-2700MHz 2600 - 2700 MHz 9 dBi
17. JCM-415 380-450MHz 380 - 450MHz 2.5 dBi
18. JCM-485 450-520MHz 450 - 520 MHz 2.5 dBi
19. JCM9-5850 5725-5875MHz 5725 - 5875 MHz 9 dBi
20. JCM5-800 758-894MHz 758 - 894 MHz 5 dBi
21. JCM5-810 800-1000 MHz 800 - 1000 MHz 5 dBi.
22. JCM5-850 850-894MHz 850 - 894 MHz 5 dBi
23. JCM7-850 850-894MHz 850 - 894 MHz 7 dBi.
24. JCM5-950 925-960MHz 925 - 960 MHz 5 dBi
25. JCM7-950 925-960MHz 925 - 960 MHz 7 dBi

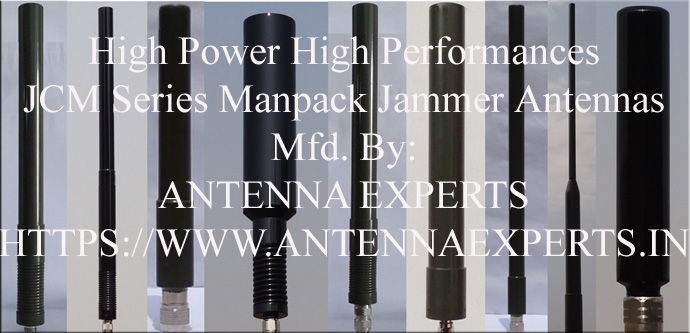

Antenna Experts JCM series manpack antenna provides the most extensive range of high performance, robust and compact antennas to support the latest generation of tactical radios and portable jammers. Antenna Experts provides a complete range of manpack antenna solutions to cover the needs for mobility, quick deployment, short range & long range communications without need of any ground plane. Our all JCM series manpack antennas are ground independent. No ground plane is required for JCM series antenna operation! Our JCM series antenna provides full efficiency even without ground plane.

Our No-Ground JCM series manpack antenna offers wideband communications range from VHF to UHF frequencies, suitable for SDR radios. JCM series antenna uses dipole design means that the antennas will operate efficiently without need for a ground plane. These manpack antennas are rugged and compact and keep units within command reach and mission-ready.

Antenna Experts manufactures wide range of lightweight, rugged manpack and man portable wide band and narrow band antennas which are a crucial element of today’s demanding RF systems used in tactical communication, electronic counter measure, spectrum monitoring and jamming applications.
Key feature of our No-Ground JCM series manpack antennas are extremely broad frequency range, good form factor, very good radiation characteristics, optimized impedance matching, sturdy construction and designed to bend and re-erect automatically.

Antenna Experts manufactures manpack antenna from 20MHz to 6000MHz which includes VHF, UHF, TETRA, GSM, CDMA, GPS, UMTS, LTE, 3G, 4G, Wi-Fi, ISM & Bluetooth etc. bands with various power handling capacity. We are specialist in designing very high power manpack antenna. Minimum power handling capacity of manpack antenna is 50 watts. High power version of the above listed models are available.
.
Our field-proven JCM series low gain and high gain antennas are highly suitable for many applications like handheld, manpack, multiband, tactical radios and wide band jammers. These manpack antennas are offered in a robust tubular form factor, with option of spring base integration. The JCM series broadband manpack antennas are vertically polarized omnidirectional receive and transmit antennas specially designed for portable radios. These JCM series manpack antennas are ideal for multiband/multirole radios (MMRs).

For spring base kindly add “S” after the above listed models. Our JCMx-xxx-S series antennas are supplied with spring fitted at the base of antenna. These are equipped with a highly flexible bending mechanism allowing the antenna to be bent in almost every direction, e.g. If you pass underneath low overhangs, it bends back and re-erects itself automatically.

The JCM5-810 and JCM6-1820 Jammer manpack collinear antenna are rugged all weather model, enclosed in a ABS radome, uses high quality brass radiating elements and does not require any field tuning or adjustments. JCM5-810 covering the frequency range of 800-1000MHz whereas JCM6-1820 cover the frequency range of 1800-2000MHz. The compact size of omni-directional antenna allows easy handling, shipping and highly suitable for transmitting, receiving GSM/CDMS bands without having the requirement of multiple antennas. Cylindrical enclosure is used for low wind loading and for minimal effect of ice formation on the antenna operation as well as providing an aesthetically pleasing appearance.

The JCM6-1216 omni -directional antenna is highly suitable for transmitting, receiving including GPS L1 band GPS L2 band without having the requirement of multiple antennas as it cover the entire 1200-1600MHz frequency band. The high gain man pack jammer antenna uses N-Male termination at the base so that same can be mounted directly on the equipment/transmitter. Optional: The antenna can be supplied with spring base if required.

The JCM6-2025 manpack jammer collinear antenna is supplied complete in assembled condition. This jammer antenna has smooth VSWR and good gain over the 2000-2500 MHz frequency band. The JCM6-2025 jammer collinear antenna consists of ultra corrosion resistant radiating elements and enclosed in ABS housing. JCM6-2025 can be supplied with spring base. The manpack antenna doesn’t require any ground plane for its operation. The high gain man pack jammer collinear antenna is designed & supplied for Man-pack application.

The JCM6-2530 manpack jammer collinear antenna is supplied complete in assembled condition. This jammer antenna has smooth VSWR and good gain over the 2500-3000 MHz frequency band. The JCM6-2530 jammer collinear antenna consists of ultra corrosion resistant radiating elements and enclosed in ABS housing. JCM6-2530 can be supplied with spring base. The manpack antenna doesn’t require any ground plane for its operation. The compact size of omni-directional antenna allows easy handling, shipping and highly suitable for transmitting, receiving without having the requirement of multiple antennas.

If you didn’t find the manpack antenna that you are looking for, then please don’t hesitate to contact us. The antenna listed above are shown for basic and common frequency bands only. We are experts in designing out of band manpack antennas.
